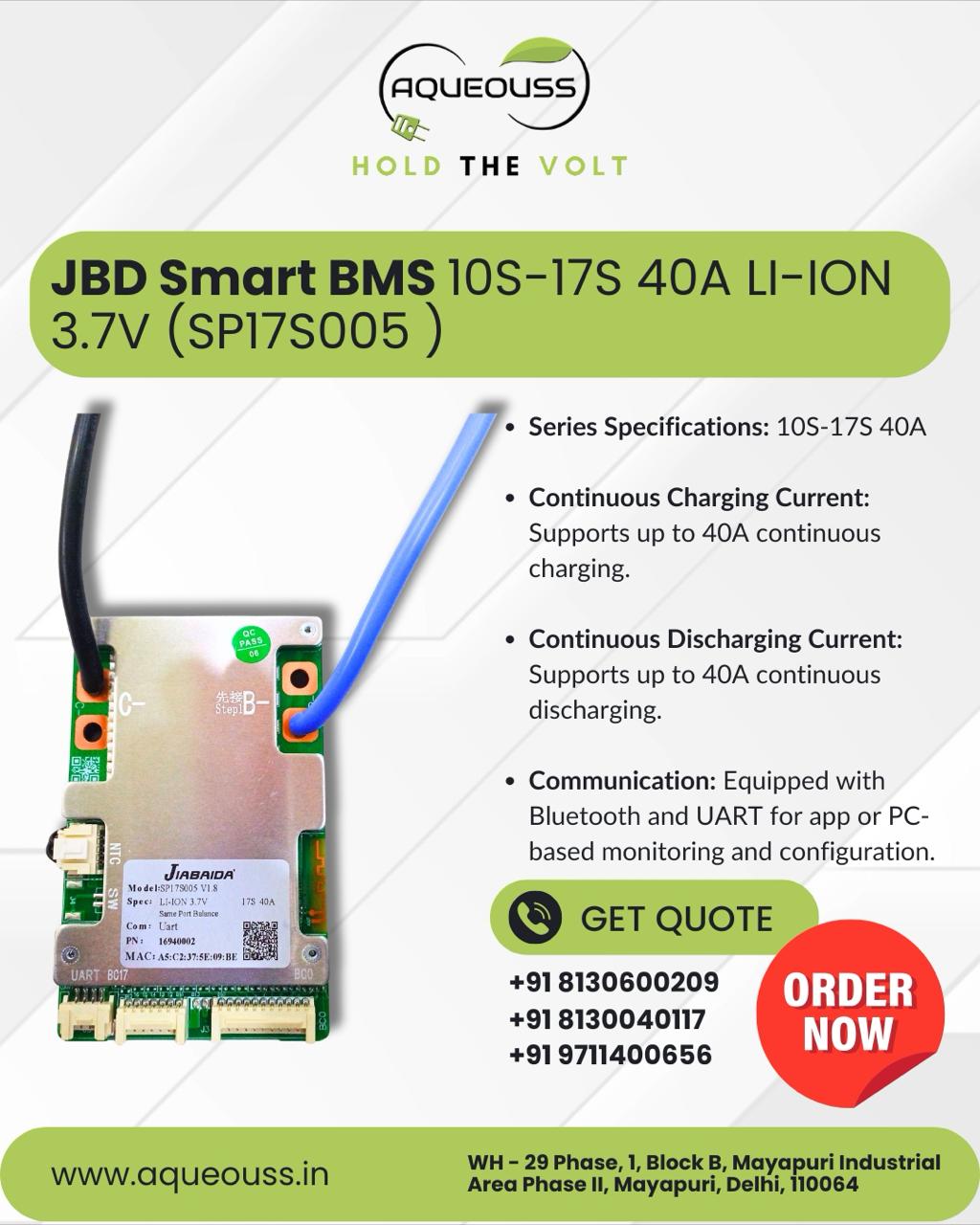

JBD Smart BMS 10S-17S 40A Li-ion 3.7V
Model- SP17S005
Bluetooth – Yes
Cell specifications – 10-17 S
Voltage – 37V-62.9V
Model- SP17S005
Bluetooth – Yes
Cell specifications – 10-17 S
Voltage – 37V-62.9V
MRP:
Original price was: ₹1,500.00.₹1,100.00Current price is: ₹1,100.00.
Out of stock
SMART CELL BALANCING
REAL-TIME PROTECTION
INTELLIGENT THERMAL CONTROL
OVER-CHARGE & DISCHARGE SAFETY
- BRAND NEW & 100% GENUINE
- Premium Yet Affordable
- Built for Durability
Description
The JBD Smart BMS 10S-17S 40A Li-ion 3.7V is a reliable and intelligent battery management system designed for 10S to 17S lithium-ion battery packs. It supports up to 40A discharge, making it a great fit for mid-range power applications. With Jiabaida’s advanced front-end acquisition chip and built-in Bluetooth, this JBD Smart BMS lets you monitor battery health, track real-time data, and adjust parameters easily through a mobile app or PC. It also offers features like optional heating or switch functions, support for series connection, and full protection circuitry. Whether you’re building a portable power unit or a backup energy system, this Smart BMS delivers safe, efficient, and customizable battery control you can rely on.
Optional Functions:
-
Heating Function
-
Switch Function (for external control relay)
-
Series Connection Support
Protection Features:
- Overcharge Protection
- Over-discharge Protection
- Overcurrent Protection
- Short Circuit Protection
- Temperature Protection
Key Advantages:
- Smart, compact, and customizable design
- Reliable high-current handling
- User-adjustable settings via Bluetooth or host computer
- Stable performance with advanced safety features
Key Features:
-
Supports 10S-17S Lithium ion Batteries
Designed specifically for 10-17 series lithium battery packs with high current needs (40A). -
Built-in Bluetooth Connectivity
Enables real-time monitoring and parameter configuration via mobile app or PC software. -
Optional Heating or Switch Function
Customizable for battery heating or external switch control, depending on application needs. -
Series Connection Support
Allows multiple BMS units to be connected in series for higher voltage systems. -
Flexible Parameter Adjustment
Modify settings like overcharge, over-discharge, current limits, and temperature via host computer. -
Advanced Protection Features
Includes overcharge, over-discharge, overcurrent, short-circuit, and temperature protections. -
Cell Balancing Functionality
Maintains uniform cell voltage for improved battery lifespan and performance. -
Compact, Durable Design
Efficient layout with robust connectors, ideal for e-bikes, solar systems, and EVs.
Applications: Ideal for solar energy storage systems, e-bikes, electric scooters, portable power stations, and custom lithium battery packs
Specification
- Model- SP17S005
- Bluetooth – Yes
- Cell specifications – 10-17 string of Lithium Ion Battery Pack
- Interface type – Charge and discharge are both at the same port
- Voltage – 37V-62.9V
- Continuous charging current – ≤40A
- Consumption of running – ≤10mA
- Consumption of sleep – ≤800uA
- Sleep conditions – Delay 65000s under no current communication protection state (settable)
- Circuit resistance – ≤10mR
- Operating temperature – 30℃~75℃
- Size – 160±0.5mm * 105±0.5mm * 10±1mm
- Balance Function: Passive balancing with precision resistor array
- Communication Interface: Built-in Bluetooth (standard) Supports UART / RS485 / CAN (optional, based on variant)
- Monitoring & Configuration: Supports real-time monitoring and parameter configuration via mobile app (Xiaoxiang / JBDTools) or PC software
