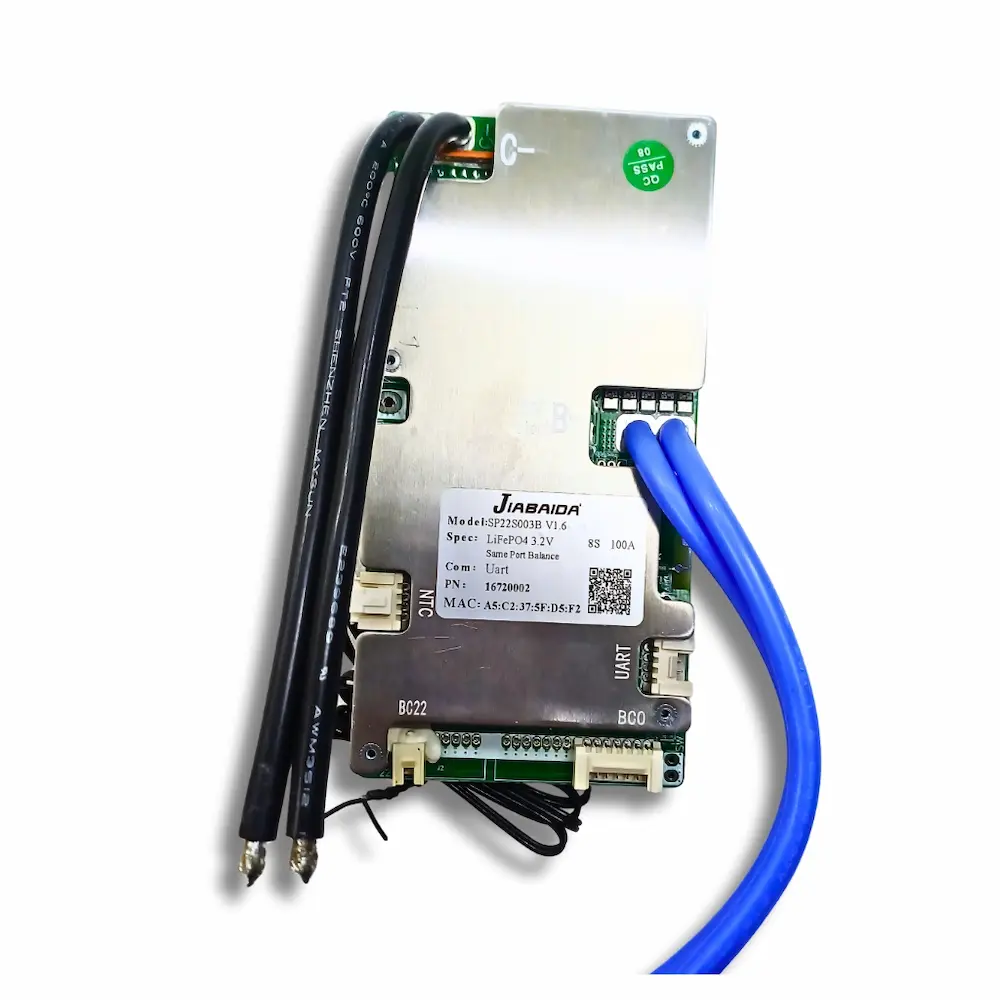

JBD Smart BMS 8S 100A LifePo4 3.2V
SKU: JBD-SP22S003B
Model- SP22S003B
Bluetooth – Yes
Cell specifications – 8 S
Charging Voltage – 25.6V
Model- SP22S003B
Bluetooth – Yes
Cell specifications – 8 S
Charging Voltage – 25.6V
MRP:
Original price was: ₹2,950.₹2,360Current price is: ₹2,360.
Out of stock
SMART CELL BALANCING
REAL-TIME PROTECTION
INTELLIGENT THERMAL CONTROL
OVER-CHARGE & DISCHARGE SAFETY
- BRAND NEW & 100% GENUINE
- Premium Yet Affordable
- Built for Durability
Note: Datasheet will be sent to your email
Description
The JBD Smart BMS 8S 100A LifePo4 3.2V is a smart and efficient battery management system built for 8S LiFePO4 battery packs. With support for up to 100A discharge, it’s ideal for handling high-power needs with ease. Powered by Jiabaida’s advanced front-end acquisition chip and equipped with a built-in Bluetooth module, this JBD Smart BMS lets you monitor battery status and tweak settings in real time through a mobile app or computer. It also supports features like heating or switch functions, series connection, and full-range protections. Whether for solar setups or EV systems, this Smart BMS ensures safe, stable, and flexible energy management tailored to your application.
Optional Functions:
-
Heating Function
-
Switch Function (for external control relay)
-
Series Connection Support
Protection Features:
- Overcharge Protection
- Over-discharge Protection
- Overcurrent Protection
- Short Circuit Protection
- Temperature Protection
Key Advantages:
- Smart, compact, and customizable design
- Reliable high-current handling
- User-adjustable settings via Bluetooth or host computer
- Stable performance with advanced safety features
Key Features:
-
Supports 8S LiFePO4 Batteries
Designed specifically for 8-series lifepo4 battery packs with high current needs (100A). -
Built-in Bluetooth Connectivity
Enables real-time monitoring and parameter configuration via mobile app or PC software. -
Optional Heating or Switch Function
Customizable for battery heating or external switch control, depending on application needs. -
Series Connection Support
Allows multiple BMS units to be connected in series for higher voltage systems. -
Flexible Parameter Adjustment
Modify settings like overcharge, over-discharge, current limits, and temperature via host computer. -
Advanced Protection Features
Includes overcharge, over-discharge, overcurrent, short-circuit, and temperature protections. -
Cell Balancing Functionality
Maintains uniform cell voltage for improved battery lifespan and performance. -
Compact, Durable Design
Efficient layout with robust connectors, ideal for e-bikes, solar systems, and EVs.
Applications: Ideal for solar energy storage systems, e-bikes, electric scooters, portable power stations, and custom lithium battery packs
Specification
- Model- SP22S003B
- Bluetooth – Yes
- Cell specifications – 8 string of Lithium Iron Battery Pack
- Interface type – Charge and discharge are both at the same port
- Charging Voltage – 25.6V
- Continuous charging current – ≤100A
- Consumption of running – ≤10mA
- Consumption of sleep – ≤800uA
- Sleep conditions – Delay 65000s under no current communication protection state (settable)
- Circuit resistance – ≤10mR
- Operating temperature – 30℃~75℃
Size – 160±0.5mm * 105±0.5mm * 10±1mm
