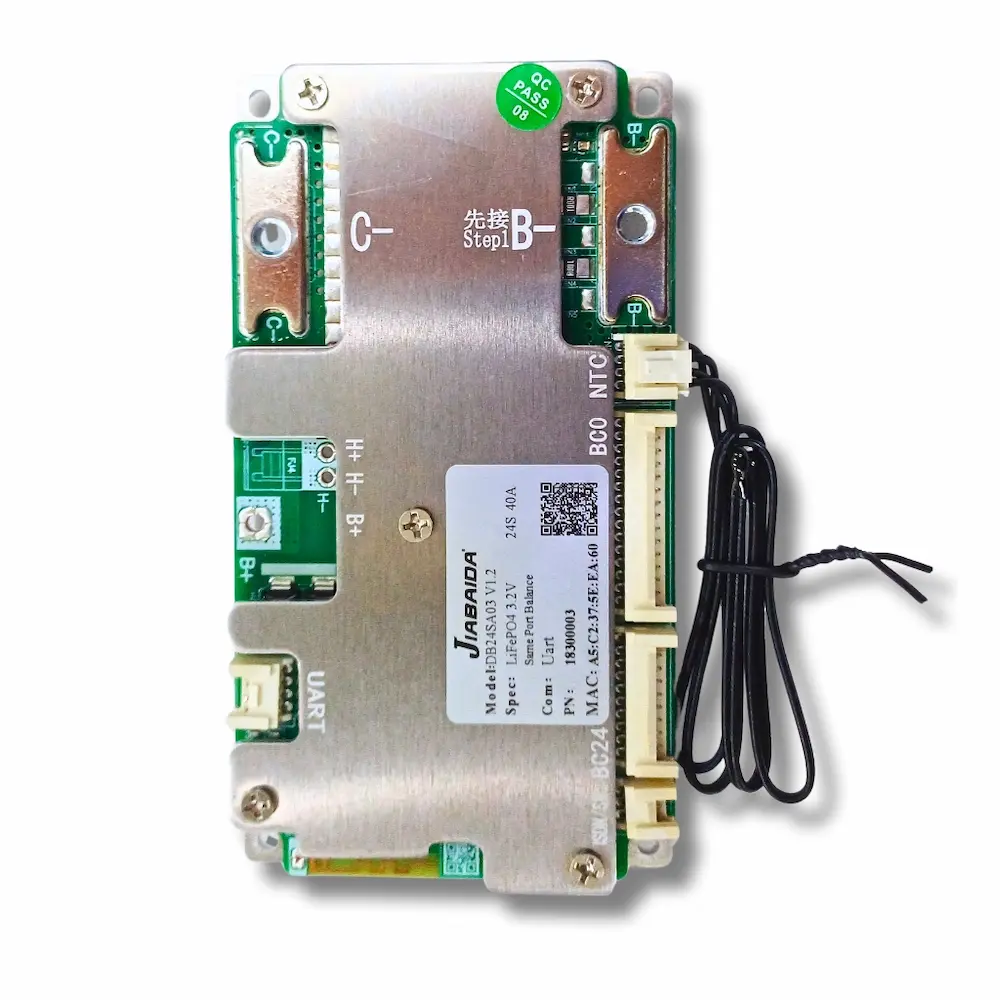

JBD Smart BMS 7S-24S 40A LifePo4 3.2V
SKU: JBD-DB24SA03
Model- DB24SA03
Bluetooth – Yes
Cell specifications – 7-24 S
Voltage – 22.4-76.8 V
Model- DB24SA03
Bluetooth – Yes
Cell specifications – 7-24 S
Voltage – 22.4-76.8 V
MRP:
Original price was: ₹2,360.₹2,124Current price is: ₹2,124.
Out of stock
SMART CELL BALANCING
REAL-TIME PROTECTION
INTELLIGENT THERMAL CONTROL
OVER-CHARGE & DISCHARGE SAFETY
- BRAND NEW & 100% GENUINE
- Premium Yet Affordable
- Built for Durability
Note: Datasheet will be sent to your email
Description
The JBD Smart BMS 7S-24S 40A LifePo4 3.2V is a versatile and intelligent battery management system designed to support 7S to 24S LiFePO4 battery packs. With a 40A discharge capacity, it’s perfect for medium to high-power applications. This JBD Smart BMS comes equipped with Jiabaida’s advanced front-end acquisition chip and a built-in Bluetooth module, making it easy to monitor battery performance and adjust settings through a mobile app or PC. It also supports optional features like heating or switch functions, series connection, and offers full safety protections. Whether you’re building an energy storage system or working on an EV project, this Smart BMS ensures smooth, reliable, and safe battery operation tailored to your needs.
Optional Functions:
-
Heating Function
-
Switch Function (for external control relay)
-
Series Connection Support
Protection Features:
- Overcharge Protection
- Over-discharge Protection
- Overcurrent Protection
- Short Circuit Protection
- Temperature Protection
Key Advantages:
- Smart, compact, and customizable design
- Reliable high-current handling
- User-adjustable settings via Bluetooth or host computer
- Stable performance with advanced safety features
Key Features:
-
Supports 7-24 S LiFePO4 Batteries
Designed specifically for 7-24 series lifepo4 battery packs with high current needs (40A). -
Built-in Bluetooth Connectivity
Enables real-time monitoring and parameter configuration via mobile app or PC software. -
Optional Heating or Switch Function
Customizable for battery heating or external switch control, depending on application needs. -
Series Connection Support
Allows multiple BMS units to be connected in series for higher voltage systems. -
Flexible Parameter Adjustment
Modify settings like overcharge, over-discharge, current limits, and temperature via host computer. -
Advanced Protection Features
Includes overcharge, over-discharge, overcurrent, short-circuit, and temperature protections. -
Cell Balancing Functionality
Maintains uniform cell voltage for improved battery lifespan and performance. -
Compact, Durable Design
Efficient layout with robust connectors, ideal for e-bikes, solar systems, and EVs.
Applications: Ideal for solar energy storage systems, e-bikes, electric scooters, portable power stations, and custom lithium battery packs
Specification
- Model- DB24SA03
- Bluetooth – Yes
- Cell specifications – 7-24 string of Lithium Iron Battery Pack
- Interface type – Charge and discharge are both at the same port
- Voltage – 22.4-76.8 V
- Continuous charging current – ≤40A
- Consumption of running – ≤10mA
- Consumption of sleep – ≤800uA
- Sleep conditions – Delay 65000s under no current communication protection state (settable)
- Circuit resistance – ≤10mR
- Operating temperature – 30℃~75℃
- Size – 160±0.5mm * 105±0.5mm * 10±1mm
- Balance Function: Passive balancing with precision resistor array
- Communication Interface: Built-in Bluetooth (standard) Supports UART / RS485 / CAN (optional, based on variant)
- Monitoring & Configuration: Supports real-time monitoring and parameter configuration via mobile app (Xiaoxiang / JBDTools) or PC software
