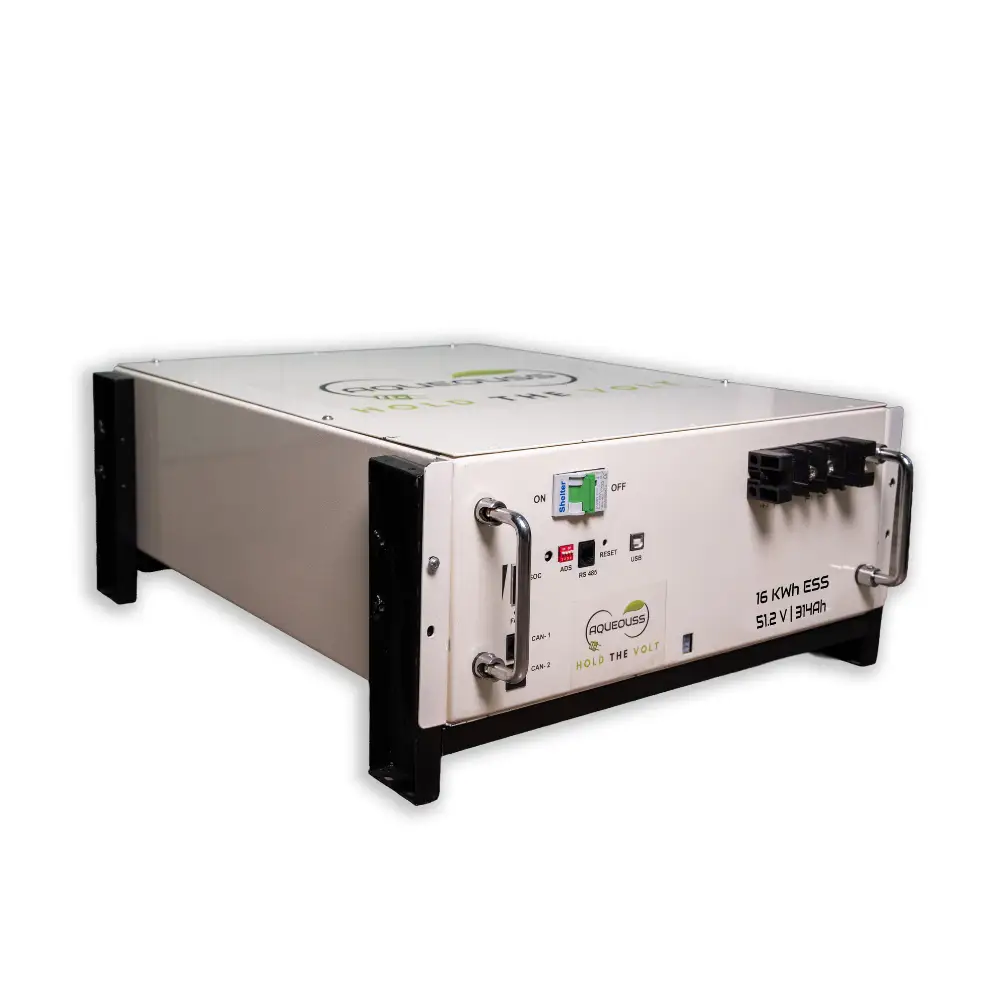

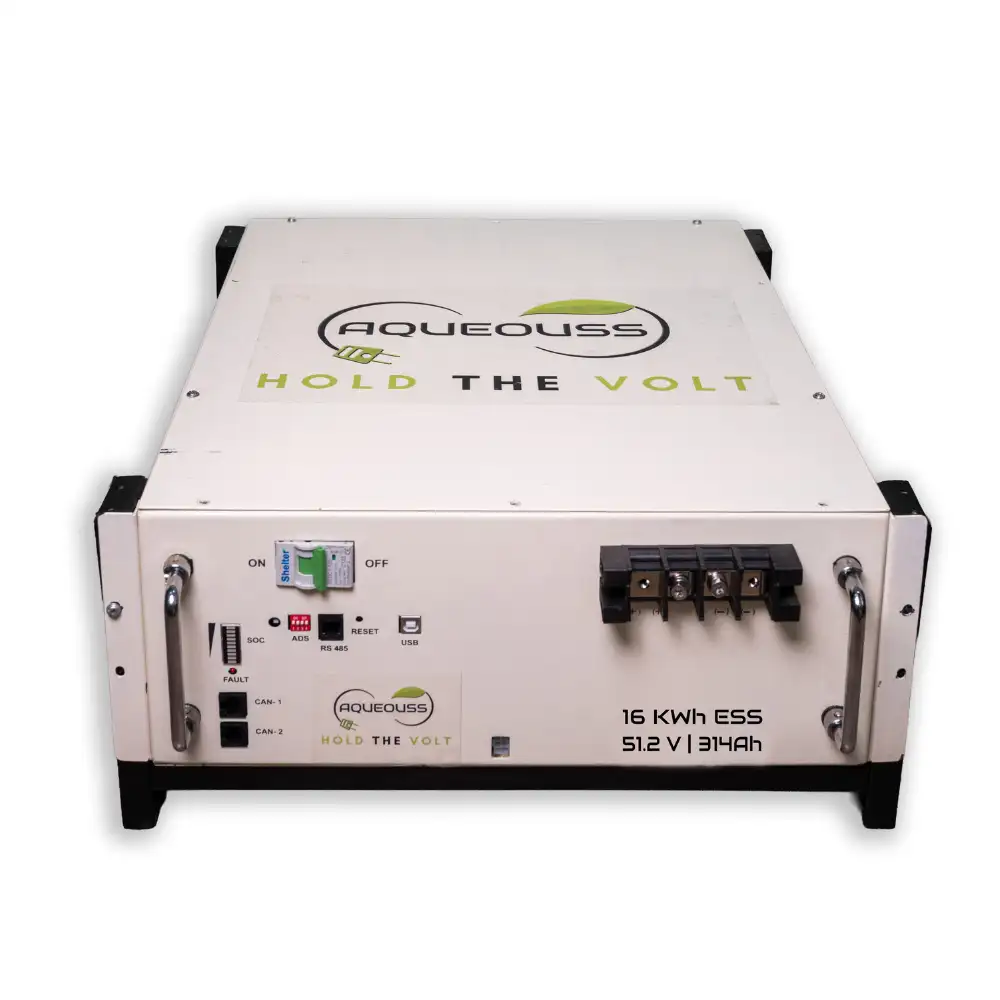

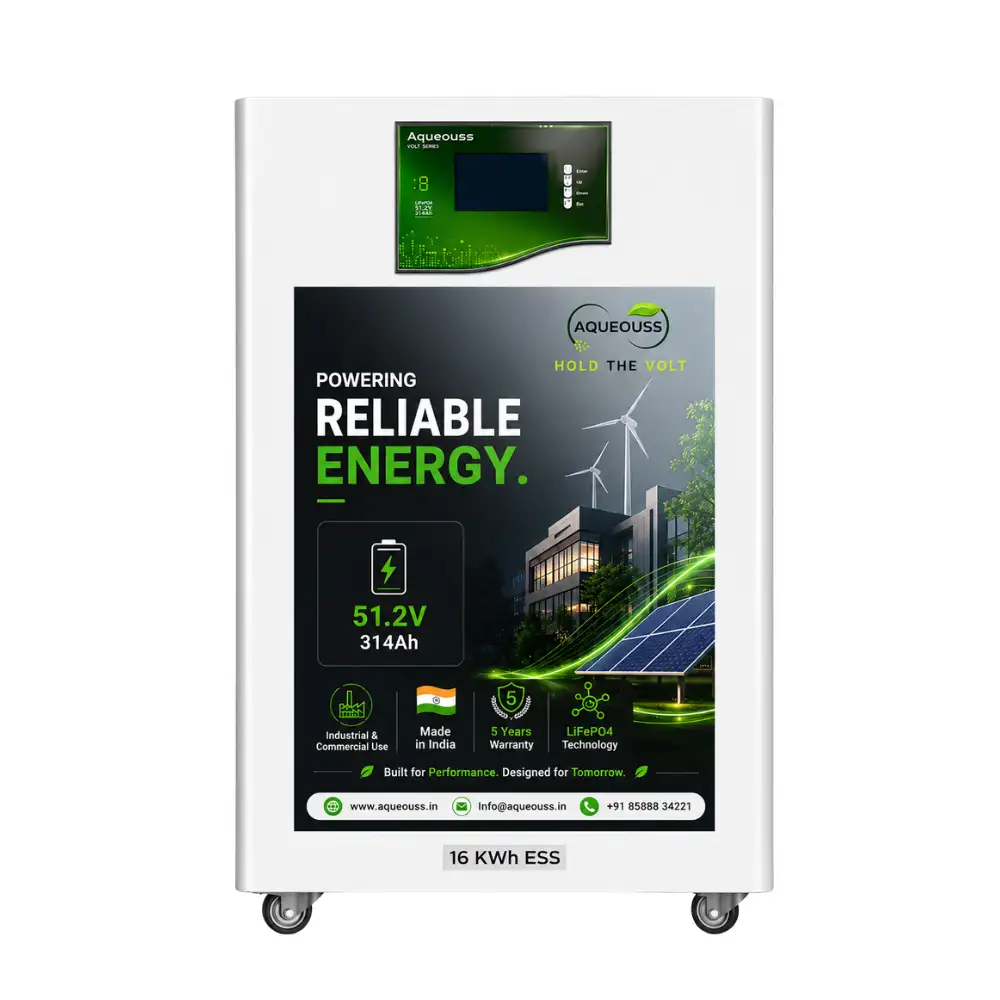

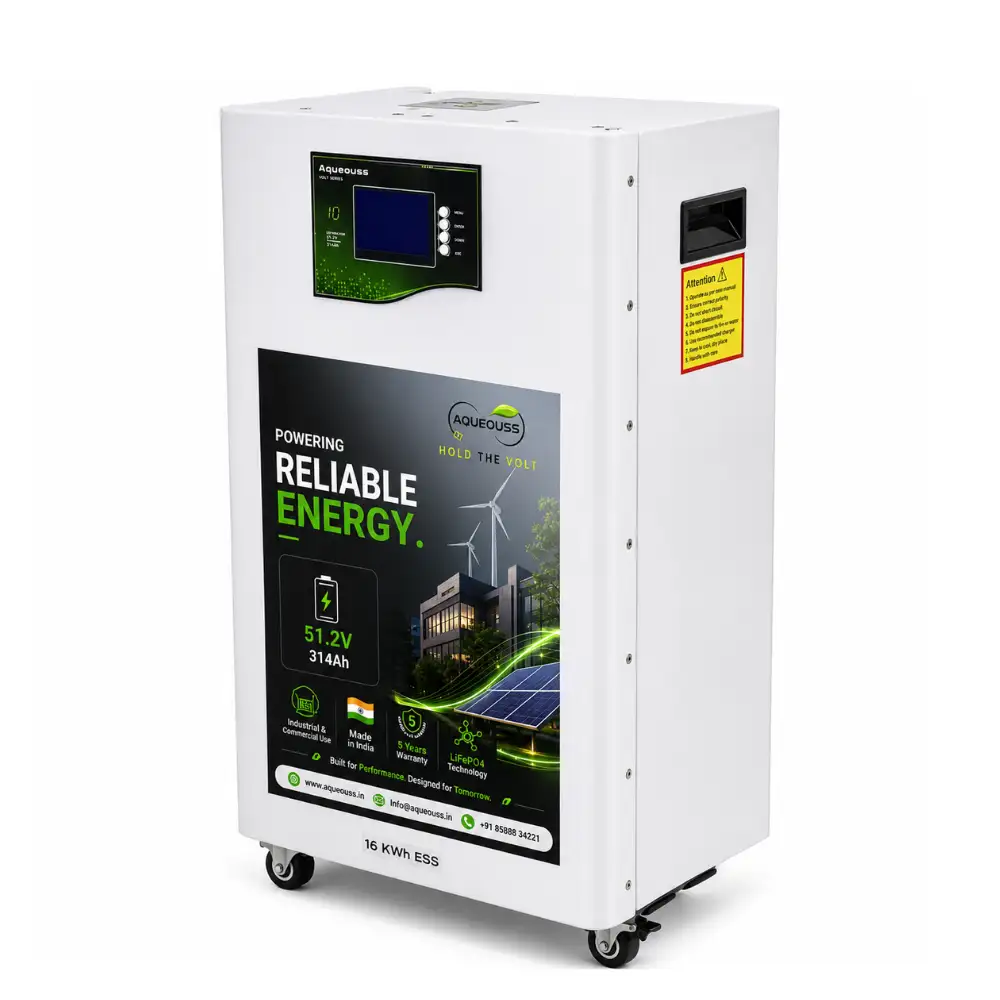

16kWh ESS LiFePO4 Battery – 51.2V 314Ah Solar Storage
SKU: AQ-ESS-51314
Voltage: 51.2v
Capacity: 314Ah
Power: 16.07 KWh
Cycle Life: 8000
Voltage: 51.2v
Capacity: 314Ah
Power: 16.07 KWh
Cycle Life: 8000
MRP:
Original price was: ₹345,667.₹181,999Current price is: ₹181,999.
FAST CHARGING
ZERO MAINTENANCE
5 YEAR WARRANTY
1O YEAR BATTERY LIFE
- BRAND NEW & 100% GENUINE
- Premium Yet Affordable
- Built for Durability
Note: Datasheet will be sent to your email
Description
The 16kWh ESS LiFePO4 Battery (51.2V 314Ah) is designed for high-capacity residential and commercial solar energy storage and inverter backup applications. With 16.07kWh energy capacity, up to 8000 cycles, and advanced LiFePO4 technology, it provides reliable energy storage for compatible hybrid and off-grid solar systems.
Specifications
- Voltage: 51.2V
- Capacity: 314Ah
- Energy Capacity: 16.07kWh
- Battery Type: LiFePO4
- Configuration: 16S 1P
- Cycle Life: Up to 8000 Cycles
- Charging: Fast Charging Supported
- Weight: Approx. 138 kg
- Size: 850 × 400 × 254 mm
- Operating Temperature: -20°C to 60°C
Key Features
⚡ Premium Highstar Grade-A LiFePO4 Cells
Built with high-quality Highstar lithium cells for stable performance, enhanced safety, and long operational life.
🔄 Long Cycle Life up to 8000 Cycles
Provides extended battery lifespan and reliable deep-cycle performance for long-term solar energy storage and inverter backup applications.
⚡ Fast Charging Support
Supports efficient charging to reduce downtime and improve battery availability for daily solar energy storage and backup requirements.
🛡 Advanced Smart BMS Protection
Integrated Battery Management System provides protection against overcharge, over-discharge, short circuit, over-current, and temperature fluctuations.
🔌 Hybrid & Off-Grid Inverter Compatible
Suitable for compatible hybrid and off-grid solar inverter systems for energy storage and backup power applications.

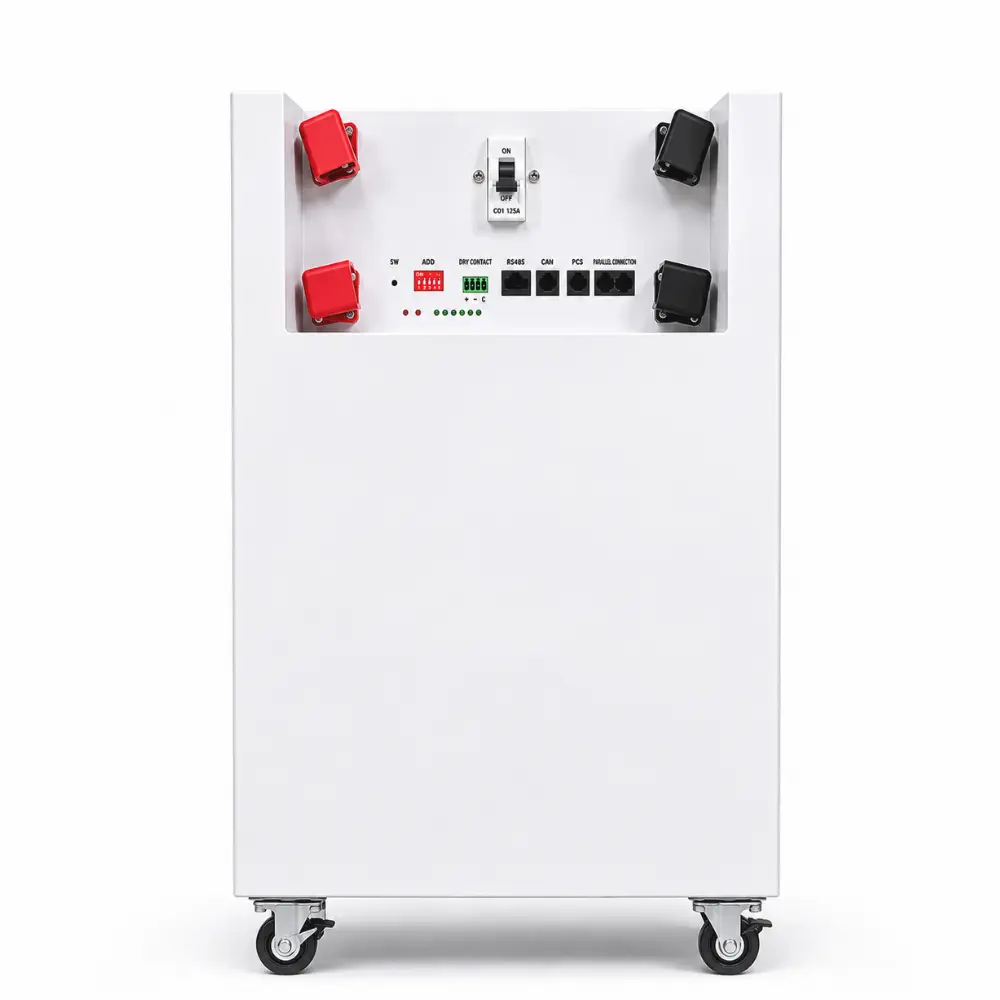

📶 CAN & RS485 Communication
Supports CAN and RS485 communication for battery monitoring, BMS data exchange, and compatible inverter communication.
🏠 Residential & Commercial Applications
Suitable for large homes, offices, shops, commercial buildings, and renewable energy storage projects requiring higher energy capacity.
⚡ High Energy Efficiency
Provides efficient charging and discharging performance for better utilization of stored solar energy.
🔧 Low Maintenance Design
LiFePO4 technology requires minimal maintenance compared with conventional lead-acid battery systems.
Applications
The 16kWh energy storage system is suitable for multiple solar and backup power applications including:
- Residential solar energy storage systems
- Commercial energy storage systems
- Hybrid solar power systems
- Off-grid solar installations
- Home and office backup power solutions
- Renewable energy storage applications
When connected with solar panels and hybrid inverters, the battery stores renewable energy efficiently and provides stable power supply whenever solar generation is unavailable or during power outages.
Compatible Solar Systems
A 16kWh ESS battery is commonly used with medium to large solar installations.
| Solar System Size | Recommended Battery |
|---|---|
| 3kW solar system | 5kWh ESS battery |
| 5kW solar system | 10kWh ESS battery |
| 8-12kW solar system | 15-20kWh ESS battery |
To determine your electricity load, select the appropriate inverter size, and estimate your required backup duration, use our Electricity Load Calculator, Inverter Size Calculator, and Backup Time Calculator.
